Instore CUBE Media Player Easy Start Guide

Instore CUBE Media Player Easy Start Guide

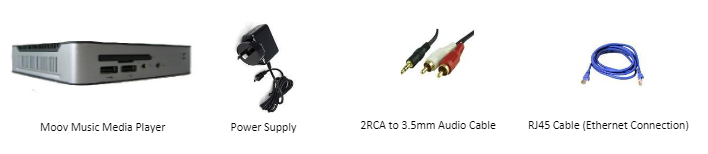

1. Check that you have received all of the listed items.

2. Plug the RCA audio cable into the back of your Amplifier.

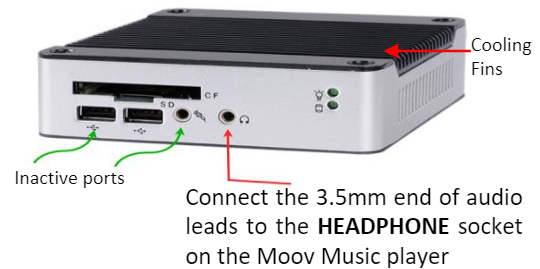

3. Connect the 3.5mm end of the audio cable to the HEADPHONE socket on the Moov Music media player.

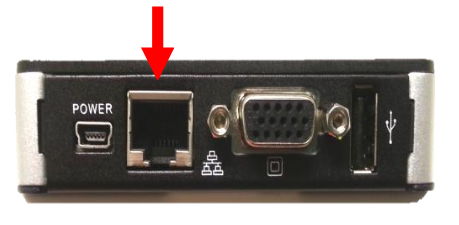

4. Connect the RJ45 internet cable to the Moov Music media player and plug the other end into your modem/router.

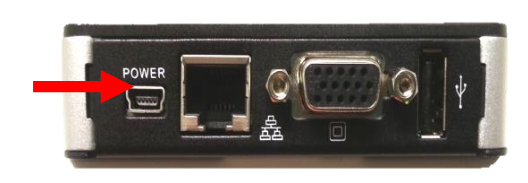

5. Plug the power supply into the Moov Music media player and plug the other end directly into an active power point. A blue/purple light on the Moov Music media player may flash for 5-10 minutes while the player powers up and begins the start up process. Once this process is complete the music will start playing, remember this could take up to 10 minutes before you will hear music playing.


Congratulations! You have just installed your Moov Music player and should hear music playing through your speakers after the player has been turned on for 5-10 minutes. Simply adjust the amplifier volume control to a suitable level and adjust the amplifiers bass/treble controls to your liking (if needed).

Idea
Please call our Customer Service Team on 1300 139 913 to confirm internet connectivity

Alert
NO MUSIC?
Check the RCA audio cable and ensure the amplifier is turned on and the volume is up. The player may still be powering up, wait for 5-10 minutes after plugging power in.

Warning
USB PORTS/VGA SCREEN
These will only be used under instruction from our Technical Department. Do not connect without authorisation from a Moov Music Representative.

Info
MEDIA PLAYER SURROUNDINGS
Ensure the Moov Music player’s surroundings provide adequate air flow and the cooling fins are not covered. A clearance of 20cm is recommended on each side & top.
